ADINA Structures TRANSOR for Femap Menu: Run and Monitor Analysis
Run an ADINA Analysis

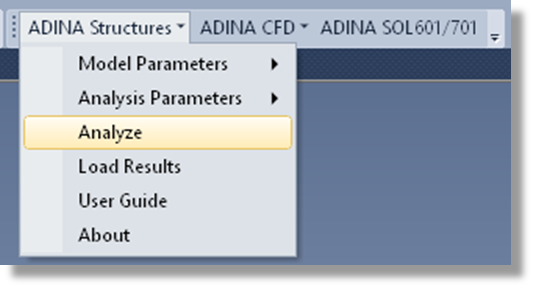

Access the ADINA Analyze menu as shown below.

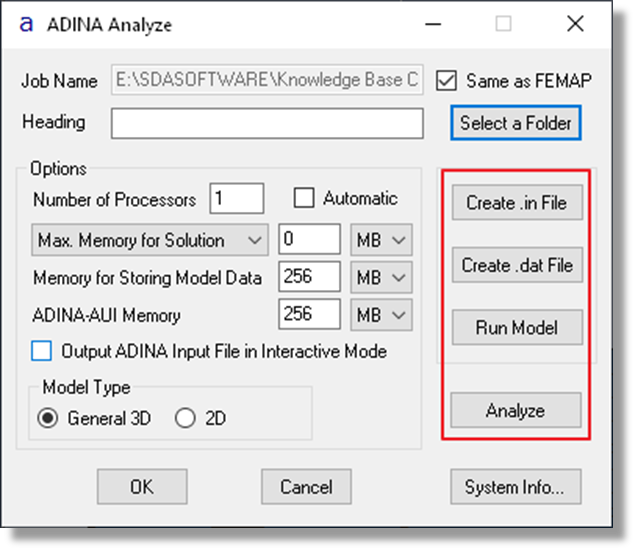

Use the Analyze menu to control the analysis filename headings and file locations; control the allocated memory; and initiate an analysis using one of the menu buttons indicated below.
Monitor an ADINA Analysis

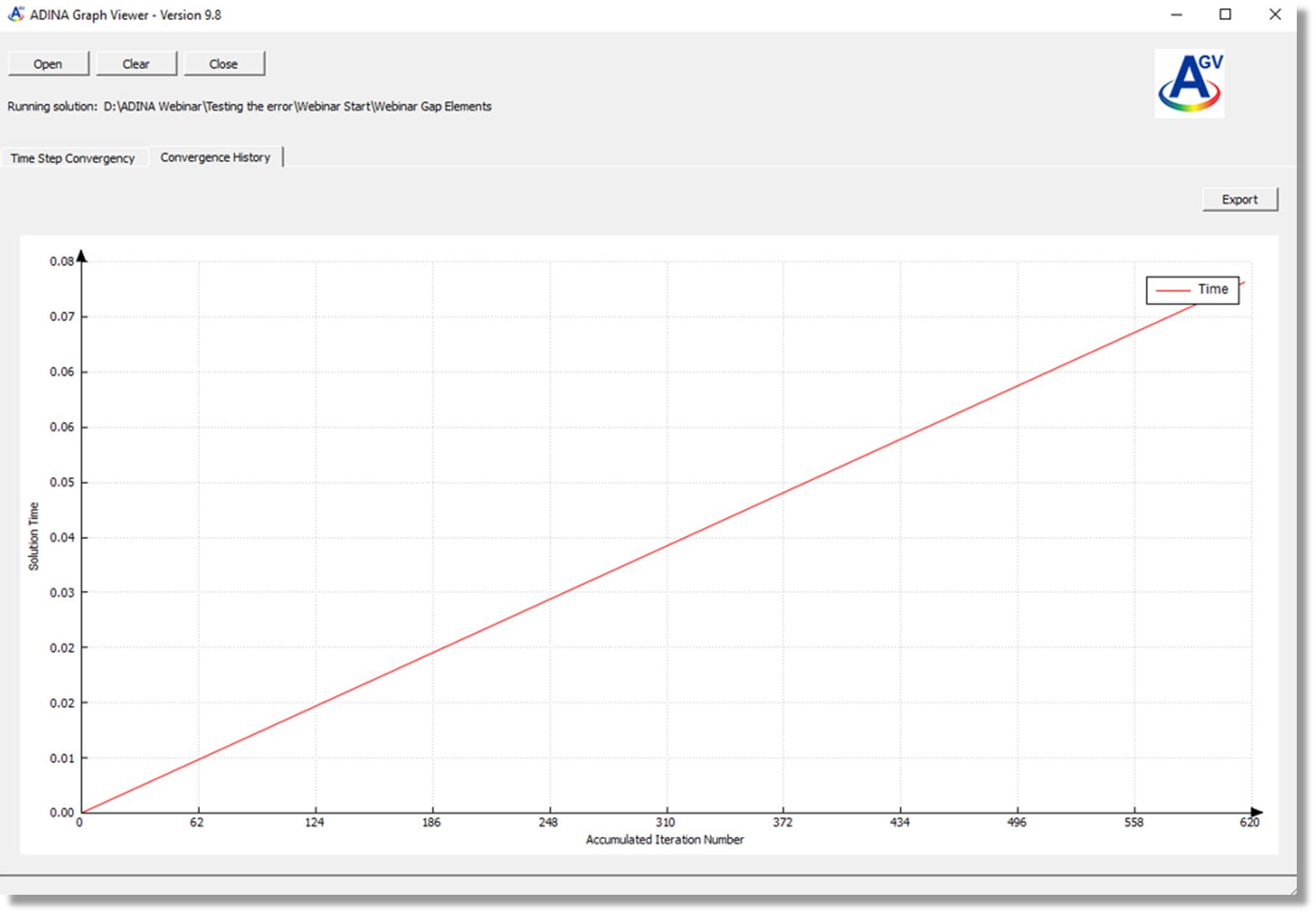

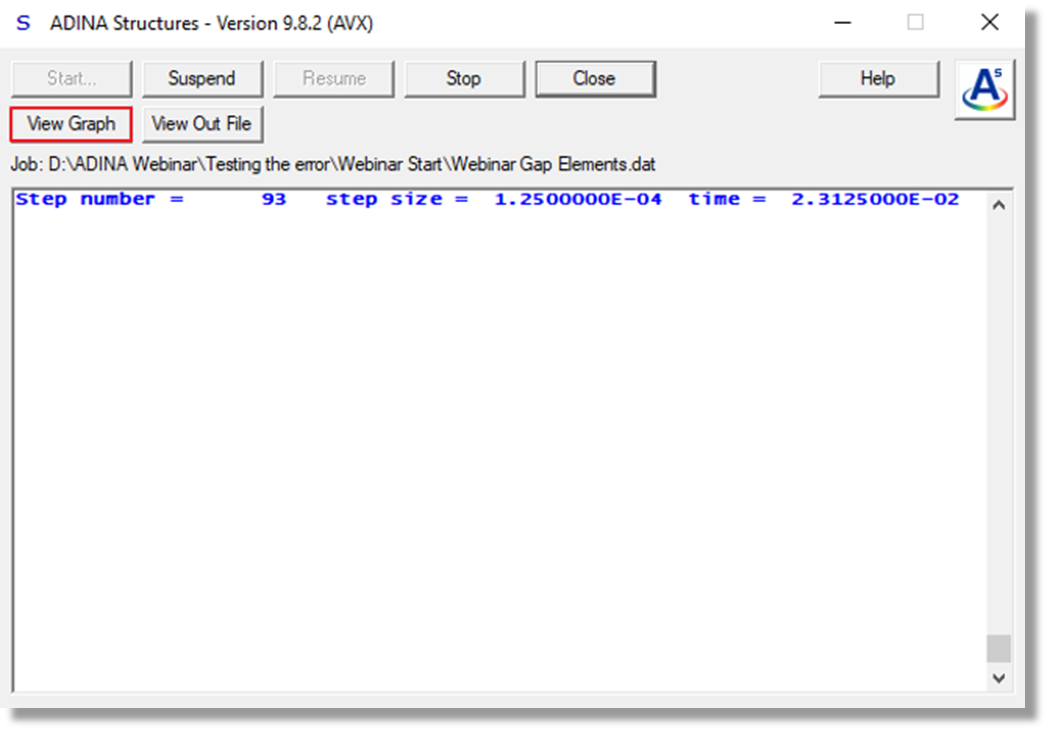

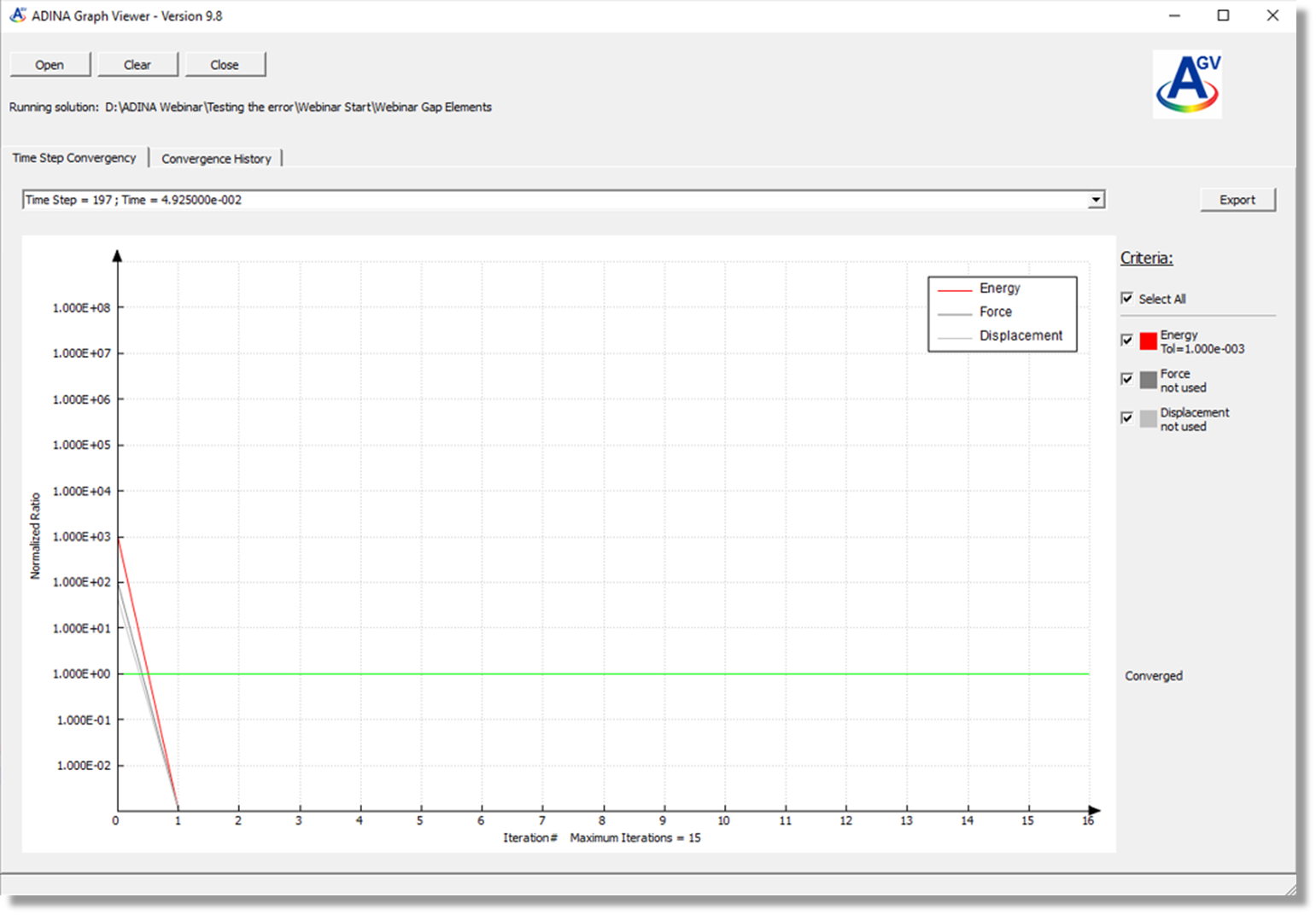

After launching an ADINA analysis through the Femap TRANSOR menu, an analysis monitor window will appear. The main window will display a log of solution time steps. This menu also provides the ability to Suspend, Resume, or Stop the analysis. Additionally, one can more closely monitor the solution convergence using the View Graph button. The convergence of the current time step or a cumulative convergence history can be viewed in a graphical format. Examples are shown below.
